Office Buildings

TIDE Hamburg

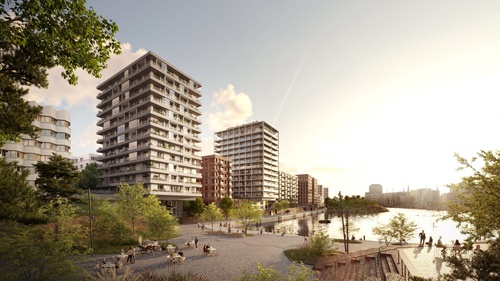

© ECE Group Services GmbH & Co. KG (visualization) and Drees & Sommer (own photographs)

CLIENT

ECE Work & Live GmbH & Co. KG

LOCATION

Hamburg, Germany

PROJECT DURATION

02/2021 – 12/2024

NORTH EXCAVATION PIT DEPTH

Approx. 9.00 m

BASEMENT FLOORS

2

SHORING TYPE

beam shoring, sheet pile wall, and bored pile wall

BASE

9600 square meters

PILE TYPE

partial displacement bored piles

NUMBER OF PILES

1,125

LENGTH PER PILE

10-18 m

As part of the Elbe Bridge district development in HafenCity Hamburg, several detached building complexes are under construction at sites 113 to 116.

The buildings are designed with eight to 14 floors above ground and two or three basement floors in some areas.

As part of the planning process, a site investigation was commissioned. Due to the area's current use, the investigation will be carried out in two stages.

ADDED VALUE

  • Demanding and powerful water drainage due to proximity to the Elbe River and open construction method.
  • There is a high risk of flooding the excavation pit due to the relatively low flood protection target.
  • Several construction sites in the Elbe Bridge district are being handled simultaneously by a consortium of builders.

PARTIAL SERVICES

  • Building site survey
  • Preliminary pollutant investigation
  • Preparation of water law applications
  • Excavation pit management
  • North excavation pit
